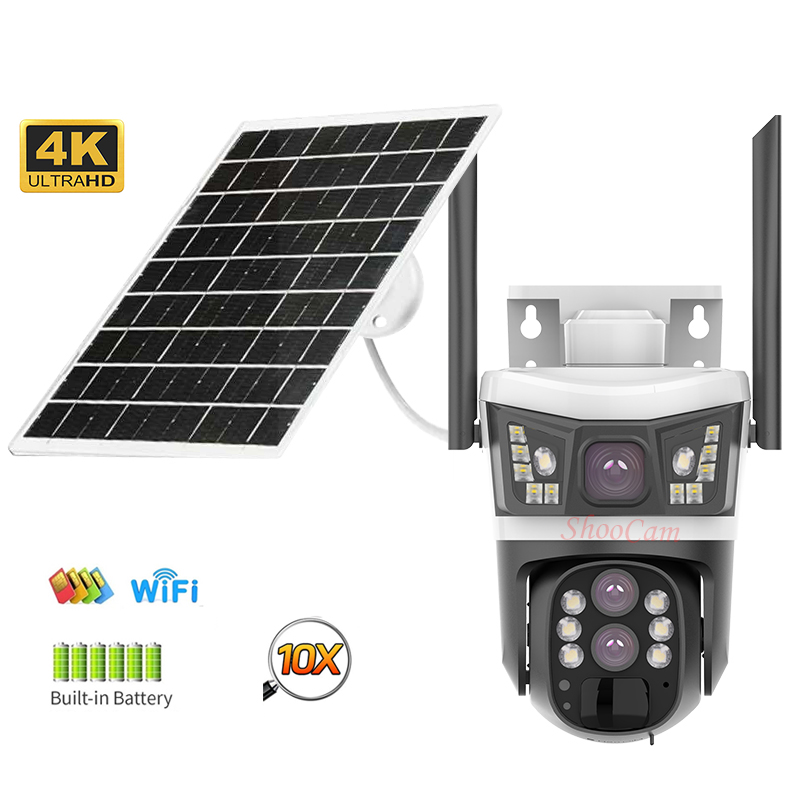

SMARK 10x Optical Zoom V380 Outdoor Solar Camera 5MP WiFi 4G 360 Degree PTZ Humanoid Sensing Night Vision Security Camera

Main chip

An Kai KM01N

SENSOR

1/2.9" Progressive Scan CMOS（GC3003*2）

intensity of illumination

colour：0.1Lux@(F2.0,AGC ON),0 Lux with Light

camera lens

3.6mm F2.3

shutter

1/3s ～1/100,000s

Day-night switching mode

ICR infrared filter

Wide dynamic function

Support digital wide dynamic


pixel

400W*2

FPS

15fps

Image setting

Support image inversion

Image enhancement

3D digital noise reduction, strong light suppression, digital wide dynamic

Compression standard

Video compression standard

H.265_AVI

Video compression rate

32Kbps~1.5Mbps Rate adaptation

Audio compression standard

ACC

Audio compression rate

8kbps

Interface and function

Yuntai control

horizontal direction：270 °normal direction：90 °

Network frequency band

LTE-FDD:B1/3/5/8
LTE-TDD:B34/38/39/40/41

audio interface

Built-in microphone and speaker

Universal function

NTP time calibration, time watermarking, and support for local storage of video
with Micro SD card (128G).

alarm

Motion detection, motion tracking, human detection.

Restore factory settings

Equipment fuselage recovery

other

Power supply

Photovoltaic cell power supply：DC 5V/2A（max）18650-12000mAh

power consumption

functional mode≈5W

Photovoltaic panel

10W

Adaptability of working environment

Working temperature:-10℃ ~+50℃ ; Working humidity: the relative humidity is
less than or equal to 75%

Fill light lamp

Bolt machine: 6 infrared and white light integrated lamp beads ; Ball machine: 6
infrared and white integrated lamp beads.

Complementary light distance

Infrared fill light 10m～15m (depending on the specific environment)

4G antenna

4G strip antenna /2

Installation mode

wall mounting

Color box size

294*200*165MM

package

61*42.5*52.5CM

specifications

12 sets
