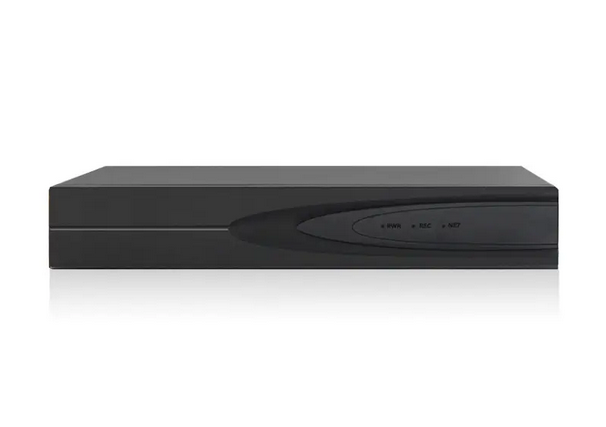

Smark 16 CH 8MP NVR AI Human Face Recognition Vehicle Detection, SM-IVR-P6s-50016-8M
SM-IVR-P6s-50016-8M
Model | SM-IVR-P6s-50016-8M | |
System | Main processor | MSTAR |
Operating System | Embedded Linux | |
System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | |
Interface | Operator interface | 16-bit true color graphic menu operation interface, support mouse operation |
Preview | 1/2/4/10 | |
Video | Video input (IP) | 16 Channel * 8Mp |
Video compression | H.265+ | |
Display quality | Max:4K | |
Playback quality | 4K/5M/4M/3M/1080P | |
Decode | 1*4K/1*5M/1*4M/2*3M/3*1080P | |
Alarm | Motion Detection, Human Face Detection, Human Face Recognition | |
Audio | Audio compression | G.711A |
Intercom | support | |
Record & | Recording mode | Manual>Alarm>Dynamic Detection>Timing |
Local payback | 1*4K/1*5M/1*4M/2*3M/3*1080P | |
Search mode | Search by Time/Calendar/Event/Channel/Face | |
Record storage | HDD、Network、Cloud | |
Backup mode | Network backup, USB hard disk, USB burner, SATA burner | |
External interface | Video output | 1ch VGA，1ch HDMI HD output |
Audio I/O | 1/1（3.5mm） | |
Alarm I/O | 0/0 | |
Network interface | 1*RJ45 10M/100M Adaptive Ethernet port | |
USB interface | 2*USB2.0 ports(one USB extension interface is reserved) | |
HDD | 1*SATA(Up to 14TB for each disk) | |
ESATA | No | |
Other | Protocol | Multi Protocol, ONVIF, RTSP |
Power supply | DC12V/2A(Power Adapter included) | |
Power Consumption | <10W(Without HDD) | |
Work environment | Temperature:0℃-＋55℃ , Humidity:10%－90%RH |
