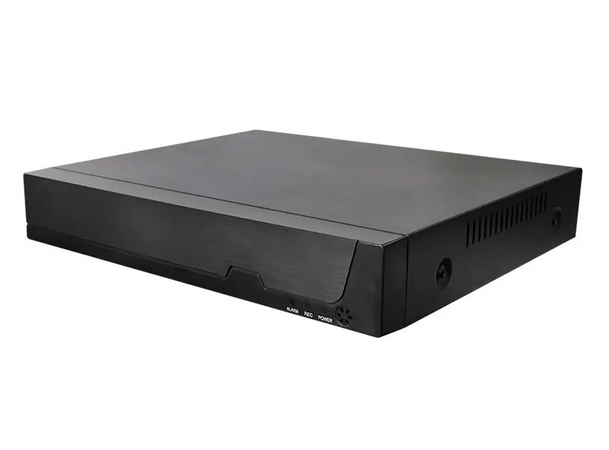

SMArk 16ch DVR, 2MP Live, 2MP Recording

Model

SM-DVR-ENZ-2016-2M

System

Main processor

NT98

Interface

Operating interface

support 16-bit true color graphical menu interface and mouse operation

Preview

1/4

Video

Codec

H.265+

Monitor quality

VGA(1080P at most);HDMI(1080P at most);CVBS

Preview ability

16*2M-N@12fps(6 in 1)/ 8*4M-N@15fps(6 in 1)/
8*1080P@15fps(XVI), default: 5M-N

Encode ability

16*2M-N@12fps(6 in 1)/ 8*4M-N@15fps(6 in 1)/

Decode ability

16*2M-N@12fps(6 in 1)/ 2*8M-N@15fps(6 in 1)/
2*1080P@15fps(XVI), default: 5M-N

Multi-mode input

Analog: 16*2M-N
hybrid: 16*2M-N(analog)+4*1080P(network)

Motion Detection

Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel)

Audio

Audio compression

G.711A

Intercom

support

Record & playback

Record mode

manual>alarm>motion detection>timing

Local Playback

16ch(analog input mode)

Search mode

Search by time, calendar, event, channel

Storage & backup

Video storage

HDD, network

Backup mode

Network, USB hard disk, USB burner, SATA burner

External Interface

Video input

16ch BNC

Video output

1ch VGA,1ch HDMI

Loop Vout

N/A

Audio I/O

16ch Input and 1ch output

Alarm I/O

0

Network interface

RJ45 10M/100M self-adaption

PTZ control

Support kinds of PTZ protocols

USB

2* USB 2.0 ports

HDD

1*SATA ports ,Maximum support 14T

Wireless

3G, WIFI (extend via USB)

General

Power supply

12V/2.5A

Power Consumption

<15W (without HDD)

Working environment

Temperature:0℃—+55℃，Humidity:10%—90%，Atm:86kpa—106kpa

Dimension

260mm*43mm*190mm

Weight

2kg
