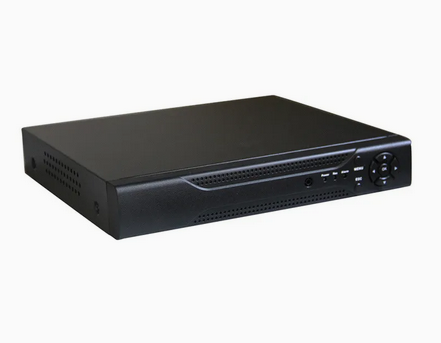

Smark 32 CH 5mp HD Network Video Recorder (NVR), SM-NVR-XM-2032-5M-2S
SM-NVR-XM-2032-5M-2S
Model No. | SM-NVR-XM-2032-5M-2S | |
System | Main processor | NT98332 |
Operating system | Embedded Linux | |
System resource | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | |
Interface | Operation interface | 16-bit true color graphic menu operation interface, support mouse operation |
Display screen | 1/2/4/6/8/9/32 | |
Video | Video input (IP) | 32*5mp |
Video standards | PAL(625TVL,50f/s);NTSC(525TVL,60f/s) | |
Video compression | H.265AI/H.265+(compatible H.265/H.264) | |
Display quality | Max:5mp | |
Playback quality | 5M/4M/3M/1080P | |
Decode | 5M(2+3)/4M(2+5)/3M(3+6)/1080P(5+9) | |
Motion detection | Depend on camera | |
Audio | Audio compression | G.711A |
intercom | Unsupport | |
Record and playback | Record mode | Manual>Alarm>Dynamic Detection>Timing |
Local playback | 5M(3+1)/4M(4+1)/3M(5+1)1080P(8+2) | |
Search mode | Search by Time/Calendar/Event/Channel/Face | |
Storage and back up | Record Storage | HDD、Network、Cloud |
Backup mode | Network backup, USB hard disk, USB burner, SATA burner | |
Interface | Video output | 1ch VGA，1ch HDMI HD output |
Audio I/O | 1/1(3.5MM) | |
Alarm I/O | 0/0 | |
Network interface | 1*RJ45 10M/100M/1000M Adaptive Ethernet port | |
USB interface | 2*USB2.0 ports | |
Hard disk | 2 SATA(Up to 14TB for each disk) | |
other | PTZ control | Control PTZ device by network |
ONVIF | Available | |
Power supply | 12V /4 A | |
Power Consumption | <10W(Without HDD) | |
Work environment | Temperature:0℃ －55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp | |
Dimension | 118mm*73mm | |
Weight | A total of about 63g | |
