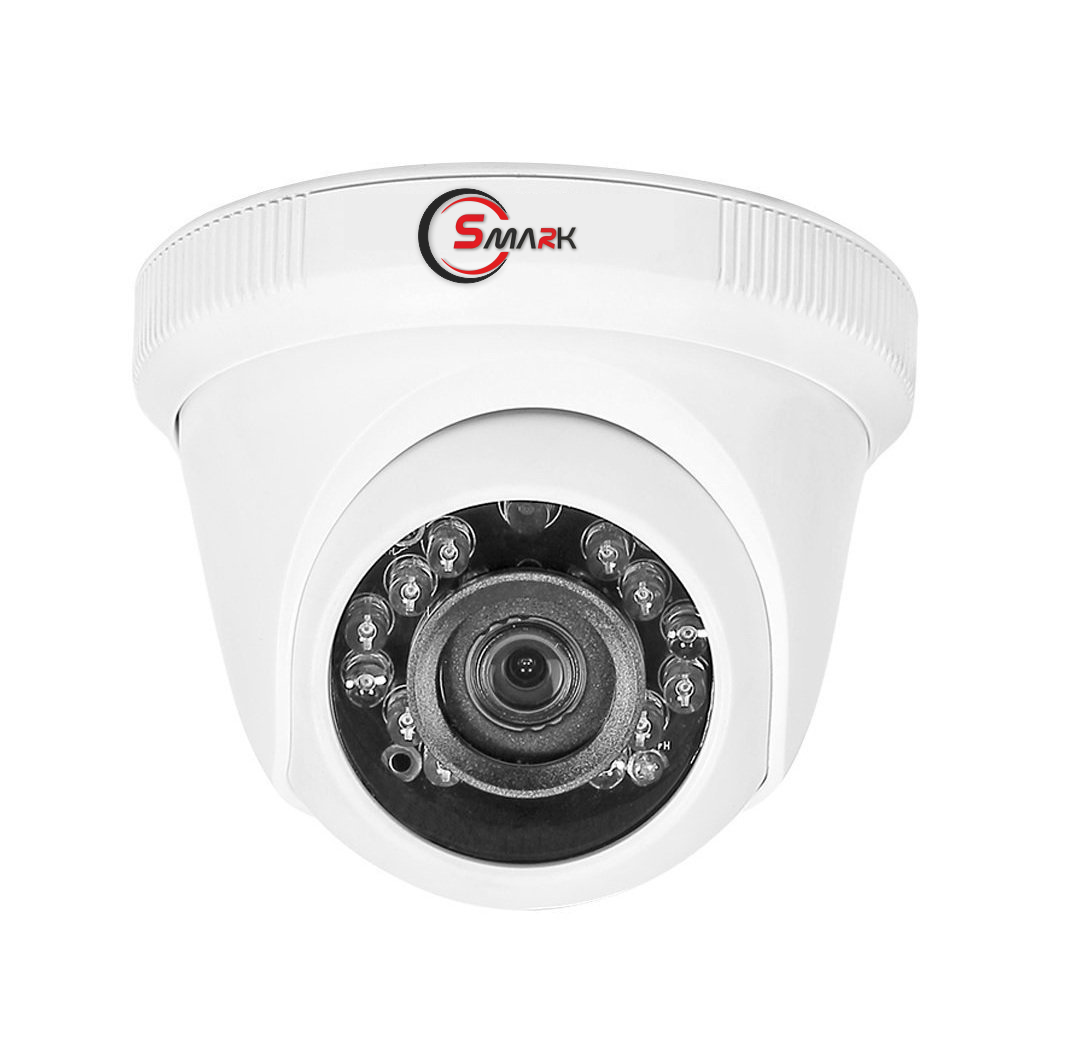

SMArk Regular 2.4MP HD Dome, Color Night Vision, with OSD Cable

Key Feature

• 2.4 Megapixel high-performance CMOS

• Analog HD output, up to 1080P resolution

• True Day/Night, Smart IR

• Up to 20m IR distance

• IP66 weatherproof

• Image Sensor : 2.4

  MP CMOS Image Sensor

• Signal System : PAL/NTSC

• Effective Pixels : 1920(H)*1080(V)

• Min. illumination : 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR

• Shutter Time : 1/25(1/30)s to 1/50,000s

• Lens : 2.8mm, 3.6mm optional

• Angle of View : 92°(2.8 mm),70.9°(3.6 mm)

• Lens Mount : M12

• Day & Night : ICR

• Angle Adjustment : Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°

• Synchronization : Internal synchronization

• Video Frame Rate : 1080p@25fps/1080p@30fps

• HD Video Output : 1 Analog HD output

• S/N Ratio : ＞62dB

General

• Operating Conditions : -20°C-45°C(-4°F-113°F), Humidity 90% or less (non-condensing)

• Power Supply : 12 VDC±15%

• Power Consumption : Max. 4W

• IR Range : Up to 20m

• Dimension : Φ90 × 69.8 mm(Φ3.54” × 2.75”)

• Weight : 250g

For Details :

https://drive.google.com/drive/folders/1KvctxiD_JmOvO6sj3X5Ph0wxCAyMC7fs?usp=sharing
